HDI 2000B PRESSURE GAUGE SYSTEM

– Certified Gauge –

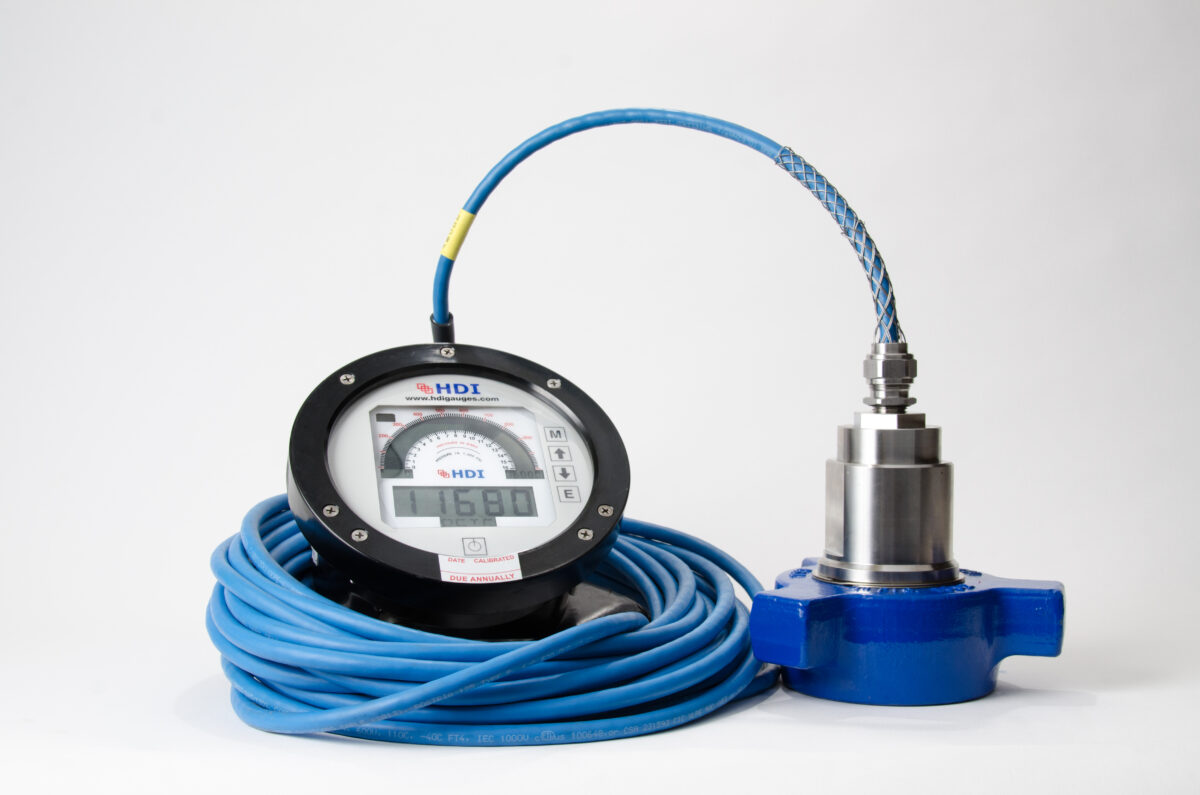

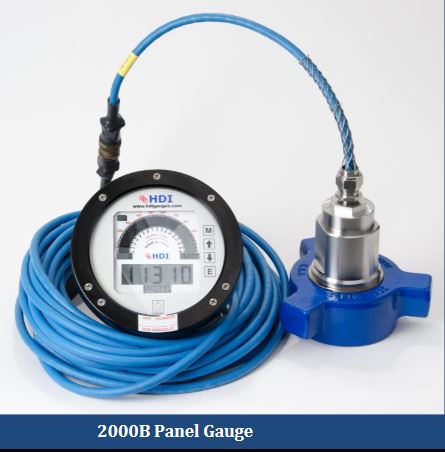

The 2000B Pressure Gauge System is an intrinsically safe, certified, solid-state electronic gauge that is easily readable regardless of the lighting conditions. It measures pressure ranges up to 20,000 psi for ATEX/IECEX certification. CSA is currently limited to  16,000 psi. CSA will be available in 20,000 psi later in 2023. ALL HDI  pressure equipment is rated within an accuracy of 0.50% of full scale. The 2000B is used anywhere users need a primary or secondary display (slave/secondary options available). Each 2000B comprises a Gauge Display, Inline Cable, and Sensor Assembly allowing the display to be relatively close or far from the connection point. It is based on HDI’s 30-year field-proven platform. The 2000B provides safety, accuracy, reliability, and low maintenance for the user.

The 2000B can be combined with a variety of sensor types for pressure, load, force, and torque applications and industries. Contact our team today to discuss your specific application.

• Battery powered
• Field repairable system
• Low battery indicator
• 30 psi to 20,000 psi; kPa or bar available upon request
• 10 psi resolution
• 2” Male NPT, 2” 1502, 2” 2002 / 2202, or flanged connections
• 4-20mA or 0-1 volt output available
• Solid state platform; no fluids or moving parts
• Analog bar graph w/ divided scale
• Consistent performance in high vibration environments

• 4-20mA output (additional barrier required)
• 0-1 volt output
• Slave, secondary displays available
