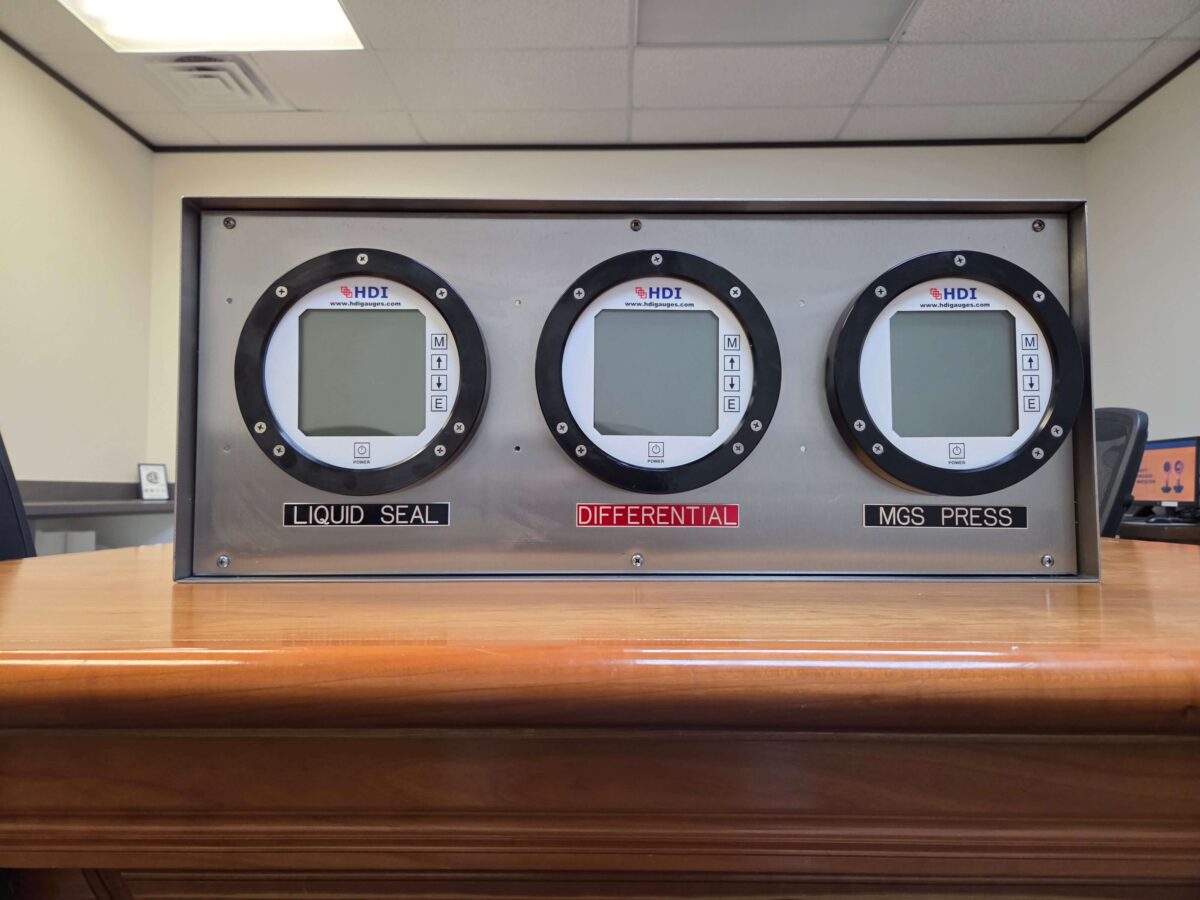

The HDI 3200 MGS Differential Monitoring System is a stand-alone, battery powered monitoring system created to monitor liquid seal pressure, and mud gas pressure. The System will show the differential between the two as well as monitoring the mud temperature. The System’s main components consist of field proven HDI Gauges, measuring pressure and temperature.
Cable is purchased in 5’ increments.
• Inline Cable: Distance from Sensor to the 3200 Mud Gas Differ ential Monitoring System.
• 4-20mA Output Cable: Distance from 3200 Mud Gas Differential Monitoring System to Local J-Box Termination.
• Slave Output in between Master and Slave Displays.
Certifications
Certificate of Compliance and Calibration Certificate
CSA
ATEX
IECEx
